Electric Panels

Our organization is engaged in manufacturing and supplying a wide range of Electrical Panels. The entire range consists of the (MCCs), Programmable Logic Controller PLCs, Electrical Control Panels, APFC Panels among others. In addition to this, we offer installation and electrical maintenance services for the same. All these products and services are available in market leading price.

APFC Panels

These panels are used in commercial buildings and industries where there is fluctuation in voltage and power supply. The electrical load required by a unit depends upon the type of machineries, cooling plants and other devices installed. There is always a possibility of damage of these equipments if power fluctuates. In case of fixed loads they can be safeguarded using capacitors, but in case of varied loads, a mechanism to switch in and switch out the capacitors is required which is basically handled using APFC panels.

Read More »

PLC Panels

We offer high performance programmable logic controllers that are widely used to automate an assortment of industrial processes. These programmable logic controllers are easy to operate and possess salient features such as digital and analog inputs, relay output, timers, counters, time switches, and auxiliary relays. We provide operational training and on site support for our PLCs. We also offers plc logic controllers, plc programmable logic controllers, programmable logic control, programmable logic controls and industrial programmable logic controllers.

Read More »

AMF Panels

We are expert panel manufacturer & supplier in Faridabad, India, and the customers can avail from us a range of AMF Panels that is available in a wide range of 10KVA to 1500KVA. AMF stands for Automatic Start on Main Failure, as these are used for automatically changing over from the main electricity supply to the standby generator in the event of failure of the mains supply. On resumption of the mains supply, the system automatically changes over from generator to mains thereby eliminating the unnecessary load on the generator and turning it off. The range of AMF panels also features interlocked MCBs or pole contactors.

Read More »

Alarm Annunciator Panels

Offered by us a broad range of Alarm Annunciator Panels, which provides a visual indication of a number of electric circuits. These panels are manufactured using high quality raw material, procured from reputed vendors of the market. Apart from these, we offer various installation and maintenance services for the same so as to meet maximum satisfaction of the clients. Furthermore, these panels are widely used as a central indicator of the status of equipment or systems in the following:

  • Aircrafts
  • Industrial processes
  • Buildings
  • Installations

Relay Panels

We offer wide range of quality Relay Panels for cement plant controls to our clients.
Other Information
  Pay Mode Terms: L/C (Letter of Credit), Other
  Minimum Order Quantity: 1 Set/Sets
  Port of Dispatch: FARIDABAD
  Production Capacity: 10
  Delivery Time: 20-30Days

PCC Panels

We offer a high quality range of Power Control Centers to our customers. These products are designed, wired, and tested with utmost care and precision before being assembled at the factory with the electrical components inside. Owing to their impeccable quality and performance, these are used extensively in industries with remote input / output and communication bus to control hundreds of inputs and outputs. As per the specifications of the customers, we can manufacture these products using copper or aluminum bus bars.

Read More »

Starter Panels

We offer wide range of Starter Panels to our clients. This is our new starter panels and is IP 44 protection.

DG Synchronization Panels

Synchronizing Panel works between two or more different power sources like DG sets to manage power supply. Synchronization helps in making different DG sets behave as a virtual single unit and eliminates subdivision of total load. It helps in transferring load from one unit to another as during service period, so that the unit requiring service can be easily shut off. In this way the critical load need not be interrupted and there is no production loss. During low load we can run any single unit, and synchronize more units as the load increases. This can be manual or automatic.

Read More »

Electrical Panels

We are one of the recognized names in the industry for designing, keeping in mind the specific requirements of the clients, and providing an array of Electrical Panels some of which are listed below. These panels are made of good quality materials in accordance with industrial quality standards. These find their application in commercial buildings, hospitals, industries, dairies, telecommunications, research laboratories etc.

Cable Trays

Our expertise in cable trays and raceways as per customer’s requirement and providing these all over India and abroad. Cable tray system comprising cable trays and associated fittings forms a rigid structure used to securely fasten and support cables. These can be used both overhead and underground. Use of cable trays makes maintenance and replacement of cables much easier and enhances the life of cables.

Read More »

Safety

We are committed to provide safe working environment by maintaining high standards of safety during project Execution. We recognize that occupational Safety and Health of our employees are of paramount importance and this will be accomplished by involvement of all Employees and Vendors. Diplomat ensures that personnel working on electrical project are provided with all required PPEs / safety gears like - Shoes, Safety belt, Helmet, Glows, Welding glass, Screen glass etc.

LT Panels

LT Panel is an electrical distribution board that receives power from generator or transformer and distributes the same to various electronic devices and distribution boards. Such panels are used in industries both for internal and external use and, therefore, they are quite rugged to withstand different climatic conditions. Our LT panels are designed to work with low electricity consumption that makes them cost effective.

Read More »

Intelligent MCC

Concept

  • Traditional inter wiring replaced by single open device-level network cable
  • Network-ready device in every MCC unit
  • Transportable MCC software for monitoring and documentation
  • System pre-tested and pre-configured before shipment

  • Software provides ultimate window into MCC

-  Real-time monitoring

-  Access from anywhere in the facility

-  Complete documentation and MCC history

  • Device-level products capture new information

-  Allows predictive maintenance, process monitoring and advanced diagnostics

Read More »

Transportable MCC Software

  • Software can reside anywhere in user's facility

— Control room
— Engineers desk
— Laptop used by maintenance personnel

  • Flexibility made possible by communication driver

SCADA Systems

Our extensive gamut includes SCADA systems, hmi scada systems that is used for the purpose of data acquisition and control at the supervisory level. The range of plc scada systems that we offer consists of input and output hardware, hmi, controllers, networks, communication and required software. We offers scada control systems, scada temperature control system, scada hmi systems, hmi scada systems and industrial scada systeme, variable speed motor drives etc.

Read More »

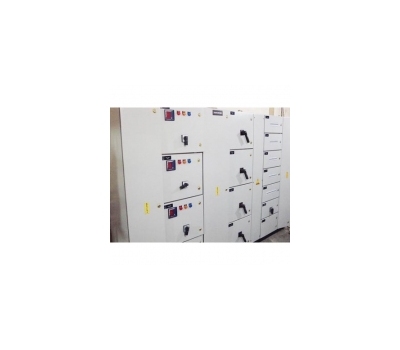

Auto Phase Sequence Correction Panel

GC Control Systems Pvt. Ltd. hold expertise in operations as Auto Phase Sequence Correction Panel manufacturer & supplier in Faridabad, India. We are one of the renowned providers of a high quality range of Automatic Phase Sequence Corrector Panels / APSC Panels. These panels are technologically advanced and are designed and manufactured using micro controllers and embedded technology. The switches, Contactors, and controllers used for manufacturing these products are tested for high quality before they are incorporated into the panels. Customers appreciate this range for its high performance and durability, which is enhanced by powder coating these panels to make them resistant to corrosion.

Read More »

Feeder Pillar Panels

The feeder pillar panels are used to terminate and distribute the control circuits. These are used in almost all the industries, townships and housing societies to put all the cut-outs together.
Feeder Pillar designer and exporter in India GC Control Systems Pvt. Ltd. Feeder Pillar for outdoor application and aluminum construction. Fixed type Feeder Pillar with 440 Volts System Voltage. We supply Feeder Pillars which meets high quality standards and zero compromise.

Read More »

Meter Boards

Customers can avail from us, comprehensive range of Meter Boards that is manufactured using very high grade raw material. Immaculately finished, these products have a pleasing appearance and are carefully wired to deliver unmatched performance. Used extensively in domestic as well as industrial purposes, these products are highly versatile and functional. We offer these products at industry leading prices to ensure that they are available to our customers from various segments with different budgetary constraints.

Read More »

VFD Control Panels

These are designed to control the speed of electric motor and feed pump. They are widely used in drilling, pumping and other large machine applications. The VFD panels are widely used in tube mills, paper mills, extruder plants, rolling Mills, cable industry and CTL Lines. They are even installed in hospitals, business houses and other public places. VFD control panel are designed to match variable speed requirements of a process unit and so are vigorously tested on various speed parameters.

Read More »

Human Machine Interface

We bring human-machine interface (HMI) technology, human machine interface system and hmi touch screen, which play a leading role in actualizing an easy and efficient interaction between man and machine. Our human machine interface system, hmi system, industrial human machine interface, hmi technology and hmi touch screen system are designed to address diverse requirements of today's industry applications and facilitate our clients to choose from an array of sleek and compact models.

Read More »

AMF (Auto Mains Failure)

AMF Control Panel is for controlling two DG Sets, Master DG and slave DG
This is a Module with Generator monitoring, protection and start facilities. Operation of the module is via three pushbuttons mounted on the front panel with STOP, MANUAL and AUTO positions. Selection of the ‘Auto’ mode is confirmed by LED indicator, and monitors the incoming mains supply (3 Phase or Single phase). Should the incoming AC mains supply fall below a configurable pre-set limit, the generator will be started, and load transferred to the gen-set.

Read More »

LT Busducts

  • Rated Current up to – 6300A
  • Fault Level up to 100 kA for 1 Sec.
  • Air Insulated Type – Conventional
  • Non-Segregated & Segregated
  • Interleaved Design for 4000A & Above
  • Type of Support – SMC
  • Busbar – Aluminium or Copper

HT Panel

33KV/11KV/6.6KV HT Panels

  • Ratings: 3P. 3W, 50Hz, 12kV, 630A to 1600 A,
  • Fault Level – 25 kA for 3 Sec.
  • Busbar – Copper / Aluminium
  • Dimensions : 600 mm (W) x 2100 mm (H) x 1350 mm (D) (Per VCB Section)

Read More »

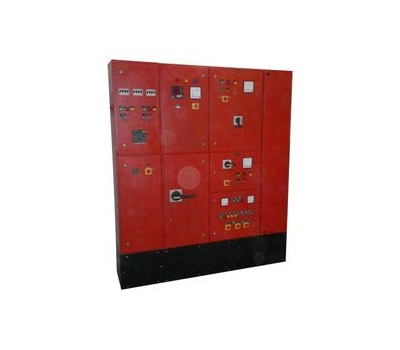

Fire Hydrant Panel

GC CONTROL SYSTEMS PVT LTD Manufacture and Supply of CPRI Approved Fire Hydrant that are used in various industries such as Chemical & pharmaceutical. The fire hydrant panels are playing major role of the fire system and are designed by us using advanced technology. They are Known for reliability and durability, our range is available in different specifications to meet varied needs of clients.


  • It works both manual / auto mode
  • When pressure drops the Booster pump starts automatically to keep the main line for desired pressure.
  • If the Main line pressure drops further/sudden drop in pressure the Hydrant pump starts automatically to keep the main line for desired pressure with hooting an Alarm.
  • Easy installation & connection
  • Available in wall mounting / floor mounting.

CPRI Approved Electric Control Panel

We are among the renowned manufacturer and supplier of quality made CPRI Approved Electric Control Panel. Fabricated using the latest technology, these CPRI Approved Electric Control Panels are made from durable materials sourced from well known vendor in the industry. These panels are rigorously checked by our team of engineers to comply with government standard of safety. Our panels are widely appreciated due to its efficiency and effectiveness of use. These CPRI Approved Electric Control Panels are very useful to synchronize, control and distribute electricity evenly.

Features:

  • Sturdy
  • Low power consumption
  • Precision engineered
  • Low maintenance
  • Cost efficient
  • Water proof

Control Panels

Our range of Control Panels is fabricated using quality raw material and is available in various models. Control panels being manufactured with total harnessing and wiring facilitates us to cut down on site installation time.

Instrument Control Panels

We are one of the top manufacturers and suppliers of Instrument Control Panels. These Panels are made by implementing latest technologies to offer high consistency. These are widely used in controlling the power consumption of machines.

Electrical Control Panels

Our organization is engaged in manufacturing and supplying a wide range of Electrical Control Panels. This highly functional range of panels is known for its sturdy construction and unmatched performance. The offered range improves power factor to increase energy efficiency and is made available in different specifications in order to meet various requirements of the clients. Additionally, we offer installation and maintenance services for these panels.

Features:

  • Low maintenance cost
  • Dimensionally stable
  • Good voltage system
  • Short circuit withstand capacity

Control Desk Panels

We offer different types of Control Desk Panels depending upon the space and functionality requirement. Our products are fitted with all necessary control features such as fault annunciation with mimic diagrams, hooters and instrumentation. We also undertake custom-designed orders to meet our customers’ specific needs. Our products are completed and delivered within the committed time frame and we assure competitive pricing.

Control & Relay Panel

Application

Generation Protection & Control of Power Distribution

Type

Simplex Duplex

System Voltage

11 KV/33KV/66KV

Rated Insulation Voltage

690 V

Ambient Temperature

45 Deg. C

Form of Separation

2B

Degree of Protection

IP:54

Configuration

Fixed

Dimensions

Width

800 mm

Depth

1800 mm For Single Breaker
1600 mm For Multiple Breaker

Height

2200 mm

Synchronizing Panels

Synchronizing Panels
Send Enquiry

Automatic Control of Diesel Generator Sets incorporating following functions

  • AMF (Auto- Mains failure)
  • AS (Auto Synchronizing)
  • ALS (Auto Load Sharing)
  • LDSS (load Dependent start / Stop)
  • LS (Load shedding)
  • Common Control PLC Panel for up to 8 Diesel Generator Sets.
  • SCADA View terminal Points.
  • Manual Synchronizing of Diesel Generator Sets.
  • Protection & Control of Diesel Generator Sets through Multi Function relay
  • Man Machine Interface (MMI)
  • Annunciation & fault indication

Motor Control Centers

We manufacture a wide range of fixed and draw-out Motor Control Centers which is available with us in varied specifications. These motor control centers are fabricated from quality raw material and have extensive research based designs in conformation to the international standards.

Fixed and Drawout Motor Control Centers

Customers can avail from us Fixed and Draw-out Motor Control Centers at reasonable price. These control centers are designed and developed for various controlling electric motors & other equipment from a central location. All these products are offered as per the specific requirements detailed down by the customers.

Furthermore, the entire range is designed to handle the following:

  • Switching
  • Protection
  • Isolating
  • Distribution and control functions

Motor Control Centres (MCC)

We manufacture a wide range of Motor Control Centre (MCC) Panels / MCC Panels and other distribution panels for our customers. These panels are available in powder coating and conform to the highest international standards. Manufactured using high quality copper or aluminum bus bars, this range is appreciated by our clients owing to its ability to feed larger loads to support high capacity industrial motors. In addition to manufacturing these products in standard configuration, our industrial expertise enables us to offer these products as per the specific demands of the customers.

Read More »

AC and DC Drive Panels

We manufacture a wide range of AC/DC Drive Panels which are available with us in varied specifications.

AC and DC Drive Panels

Customers can avail from us a wide range of AC/DC Drive Panels at market leading price. These panels are widely used in various industries for meeting constant and variable torque needs specified by the clients. Known for its customized features and designs, our range is fabricated using wire with precondition devices. This design also results in providing incoming and outgoing signals from one point to another. Further, below enlisted are the attributes of our range:

  • High efficiency
  • Less maintenance
  • Trouble free operations

DC Drive Panels

We offer highly functional DC drives, dc motor drives, variable speed dc drives which are used to control motor speed i.e dc motor drives. In addition to the ability to expand the standard functionality, the standard version can be expanded to handle higher-level software applications with built-in extended technology software. These drives are extremely flexible and cost effective in any application. Available in different specifications, we offer customized solution to our clients like variable dc drives. We also offers variable speed drives, variable speed motor drives, industrial dc drives, servo drives, industrial dc drive, electric dc drives and dc motor control.

Read More »

Distribution Boards & Stations

We are providing a wide range of Distribution Boards & Stations that is designed and fabricated as per the industry standards. A distribution board, also called panel boards, is an important component of an electricity supply system. It divides an electrical power feed into subsidiary circuits, while providing a protective fuse or circuit breaker for each circuit, in a common enclosure.

Lighting Distribution Boards

Offered by us a wide range of Lighting Distribution Boards to our valued customers. The boards offered by us are precision engineered and installed by the expert technicians of our firm. These boards are designed and developed using various fire safe & allied material, procured from reputed vendors of the industry. The entire range of products widely finds its application in various commercial sectors owing to the below enlisted features:

  • Sturdy construction
  • Superior performance
  • Consistent serviceability

Power Distribution Boards / MCB Distribution Box

Offered by us is a broad collection of Power Distribution Boards to our valuable customers. These boards are mostly used for electrical power distribution as these power distribution boards offer isolation and short circuit as basic protection. These boards are manufactured with the use of some important equipment such as ACB, MCCB, SDF and MCB/ELCB/RCCB that receive supplies from PCC.

These boards also offer various protections on case to case basis like:

  • Current
  • Earth fault
  • Earth leakage

Local Push Button Stations

Our Local Push Button Stations are available in polycarbonate or abs thermoplastic materials. We also provide accessories along with the customized boxes like cable glands, conduits, and mounting hinges to meet the customers specific requirements.

Indication Boxes

We are engaged in offering repairing and maintenance services for Indication Boxes. These services are rendered by our professionals by employing advanced tools & machinery using premium quality raw material and components. Moreover, these professionals make sure that these services are rendered in compliance with the international quality standards. In addition to this, customers can avail these reliable and timely executed services at market leading prices from us.

Product Features

Construction Features:

  • Modular / Non-compartmentalized construction
  • Panel Structure with MS CRCA/SS 304/SS316
  • Single Front/Double front operated
  • Provision for Extensible from both sides
  • Provision of Rubber gaskets to meet IP Requirement like IP 42/52/54/55/66
  • Arrangement for Heat dissipation by means of Exhaust Fan/Lowers

Pre Treatment and Painting:

  • Seven tank pre-treatment processes that include degreasing, derusting phosphating and passivation
  • Final Paint shade as per IS or client specifications
  • Synthetic enamel/epoxy based primer/powder coating as per customer's requirement

Busbar Arrangements and Cable Alleys

  • Segregated Aluminum/Copper and Electrical grade Busbars
  • Main Busbar Chamber at the top or bottom
  • Separate chamber for vertical droppers
  • Busbar System design on basis of continues current rating and fault-with stand capacity considering
  • Allowable temperature rise as per IS 8623 or as per specifications
  • Busbar supports of SMC/DMC Material
  • Simple dimensioned Vertical Cable Alley for easy terminations
  • Cable entry from top or bottom
  • Detachable gland plate is provided for cable entry

Assembly and Wiring:

  • Selection of components from approved/reputed vendor list as per approved drawings
  • Design of Internal layouts for optimum usage of space
  • Internal wiring with 660 / 1100 V Grade PVC coated stranded copper flexible wires
  • Crimping Lugs are used for internal connection/Terminations

Identifications:

  • Identification labels provided on each component.
  • Internal wiring with ferrules at the both ends.
  • Aluminum Anodize Labels are provided on each Feeder with Rating, Description & Tag No.
  • Identification Labels are provided on Busbar Chamber, Cable Alley. Live Busbar
  • We use latest technology of label printing machines for labeling work
